Dedusting booth with conveyor system and brushes

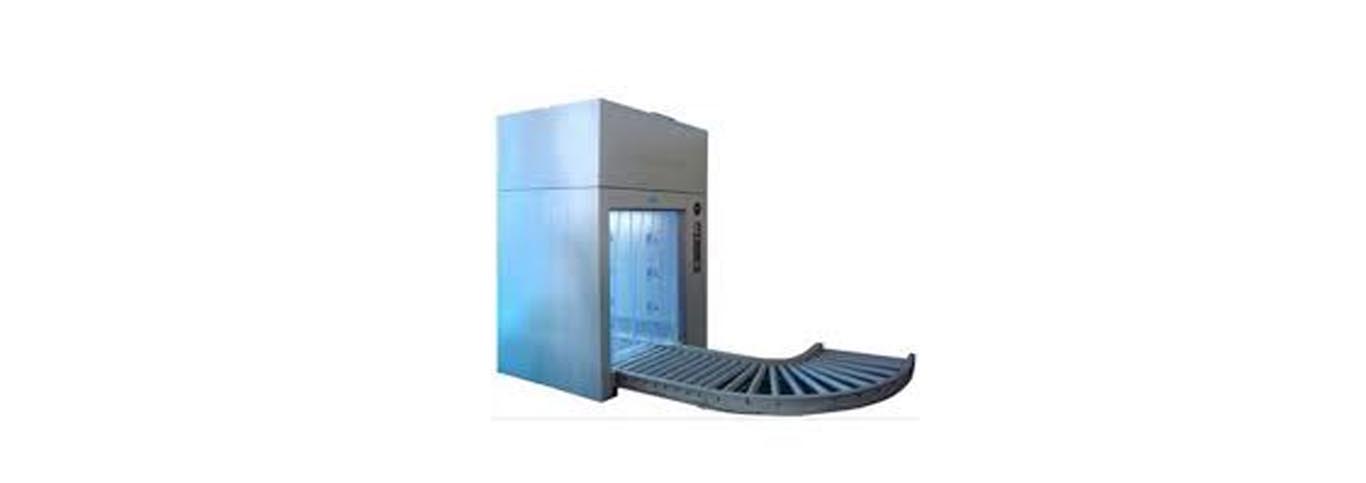

Dedusting booth with conveyor system

The De-Dusting Booth system is used to remove the loose particles/dust present on the receiving materials, which will be brought into the warehousing area before they are transferred into the quarantine area.

TECHNICAL SPECIFICATION

• MOC ( SS304 / CRCA Powder coated / double wall PUFF filled panel )
• Conveyor for materials transfer ( SS 304 roller / MS coated roller / PVC/Mesh )
• High velocity HEPA FILTER Jet system ( Above 5000 fpm)with manual adjustable direction control
• Dust extract system HEPA protected at discharge ensuring no air escape from the system
• Control system ( PLC / Manual ) with differential pressure gauges
• Removable dust collection tray on wheel.
• LED concealed light providing light intensity in excess of 400 Lux
• 2 stage filtration at supply and exhaust.
• Blower Assembly : Dynamically and statically balanced  high static centrifugal blower
• Nozzles : Made out of SS 304 fixed type or adjustable flush type being fixed on either side of  walls and ceiling
• Drive unit : multiple industrial chains controlled with in-built motor of varied speeds
• SS/PVC roller option. Vertical brushing system also available
• All tunnels are validated and shipped prior to dispatch with DQ,IQ,PQ,OQ as per GMP Std.
