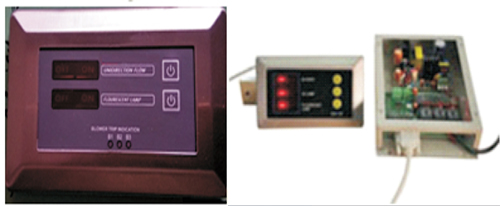

LAF Controller is used for ON/OFF controlling
of Blower, UV Lamp & CF Lamp in Dynamic pass
boxes, Bio safety cabinets and UDF Units
The status of Blower, UV Lamp & CF Lamp is
provided on display.
Features:
Advanced industrial Grade Micro controller based os
High intencity Bar LED ON/OFF Display
30 Amp Relay O/P for Blower (up to 2 HP), UV Lamp & CF Lamp options
Blower trip indication with Alarm system integrated on keypad
Soft touch tactile key pad. With SS beizel
Easy for Installation. FRC cable conectors for easy wiring

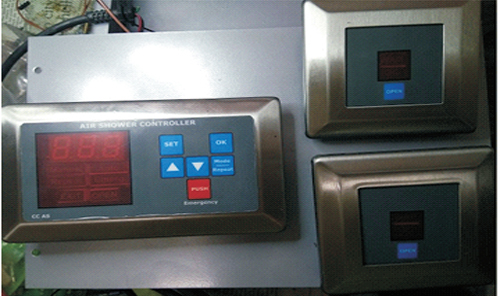

AIR SHOWER INTERLOCKING SYSTEM
Advanced industrial grade Micro controller based os
Supports Maximum of 3 doors
Supports Electromagnetic locks/Electric strikers
Delay time between door openings is 4 Sec.
Inbuilt sensor Magnetic Lock to read door feedback.
RJ 45 data cable with click in plugs for easy - wiring to keypads
Powdercoated Enclosure ,Wallmount
Door status indication with high intensity Bar LEDs
Status indication: GO, WAIT
Buzzer output for door is kept open more than specified time
TL Interlocked to doors
Digital Timer for indicating shower cycle which can be field programmable upto 99 mins.
Completely detachable connectors which is easy - for maintenance
Auto,Manual,door open,repeat,Emergency options
Models Available: FLP/non FLP versions,2 door & 3 door configuration

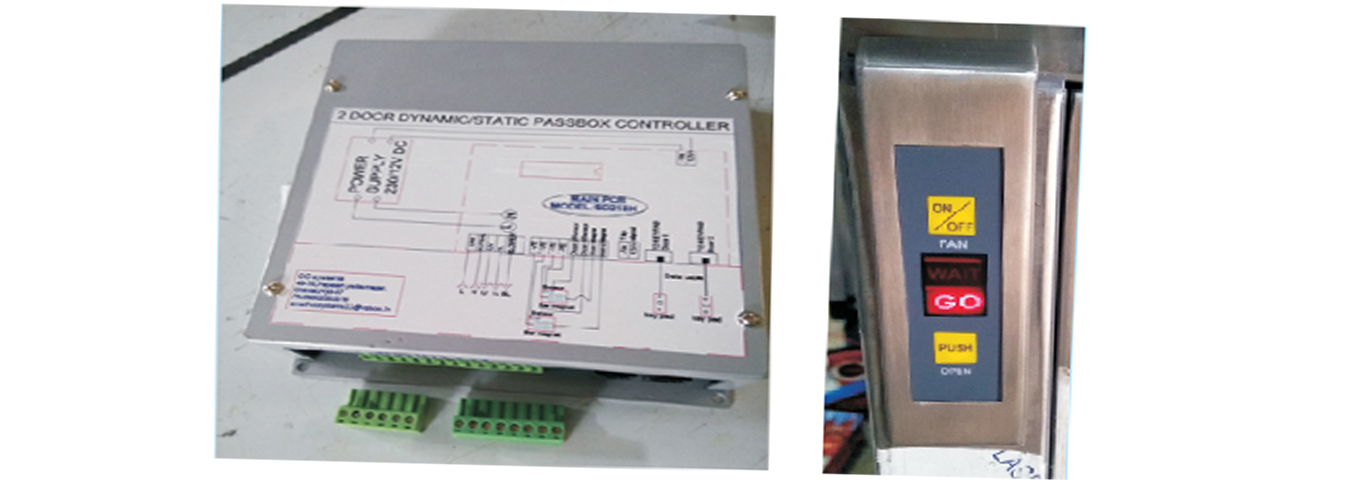

PASS BOX INTERLOCKING SYSTEM
Microprocessor based passbox controller can be 2 door / 3 doors interlocking system
Advanced industrial grade Micro controller based os
Supports Maximum of 3 doors
Supports Electromagnetic locks/Electric strikers
Delay time between door openings is 4 Sec.
Inbuilt sensor Magnetic Lock to read door feedback.
RJ 45 data cable with click in plugs for easy - wiring to keypads
Powdercoated Enclosure ,Wallmount
Door status indication with high intensity Bar LEDs
Status indication: GO, WAIT
Buzzer output for door is kept open more than specified time
UV Lamp,TL Interlocked to doors
Completely detachable connectors which is easy - for maintenance
Bar graph display in PCB gives visual input output -functioning or failure.
Models Available: FLP/non FLP versions,2 door & 3 door configuration
A-Z SPARES
A to Z spares for any brand:Blower,Motor,LAF,Airshower,BIosafety,PASSBOX pcb,Magnet Flp and non flp,Handles,lightset,Uv with hourmeter,PRE,Fine filter--etc
